Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Enginecrankshaft group, pistons / Cylinder block, gearbox end / Removing and installing flywheel

Special tools and workshop equipment required

Counterhold -3067-

Removing

Gearbox removed

Removing and installing flywheel

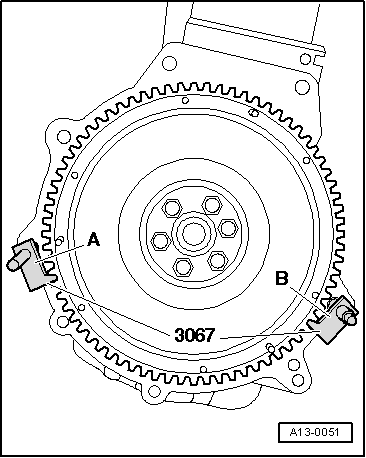

–	Insert counterhold -3067- in hole on cylinder block -item B-.

–	Loosen and remove flywheel bolts.

Installing

Installation is carried out in the reverse order; note the following:

Note

Renew bolts that are tightened with specified tightening angle.

Flywheel with sender wheel can only be fitted in one position.

–	Insert counterhold -3067- in hole in cylinder block -item A-.

Specified torques

→ Chapter „Assembly overview - cylinder block, gearbox end“
