Volkswagen Golf Service & Repair Manual: Removing and installing emblems at rear
Note
| The emblem cannot be removed without damage. |
| Removing |

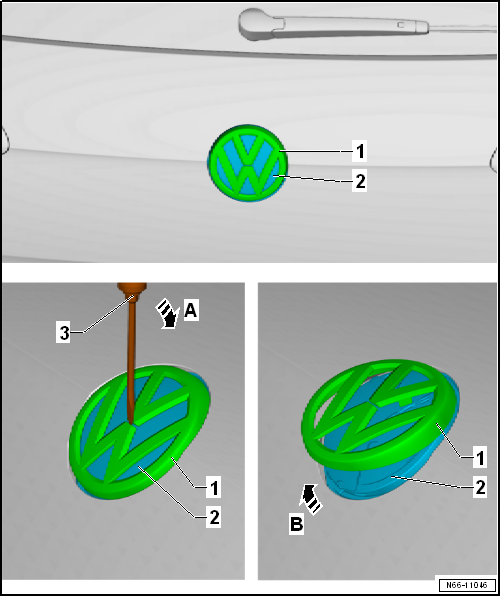

| – | Use a screwdriver -3- to carefully lever manufacturer emblem -1- off swivel badge -2- in -direction of arrow A-. |
| Installing |
| – | Press manufacturer emblem -1- onto swivel badge -2- until it engages audibly. |
Removing and installing emblem with model designation, “R”
Special tools and workshop equipment
required
Torque wrench -V.A.G 1783-
...
Other materials:
Renewing trim elements, bonded trim elements
Special tools and workshop equipment
required
Cartridge gun -V.A.G 1628-
Removal wedge -3409-
...
Acoustic and optical ParkPilot signals
Fig. 150 ParkPilot display of the area
around the vehicle (colour)
Fig. 151 Mini ParkPilot display of the
area around the vehicle (colour)
