Volkswagen Golf Service & Repair Manual: Removing and installing auxiliary heater bracket

Volkswagen Golf Service & Repair Manual / Auxiliary heater / Aux. heater/heater booster / Auxiliary heater / Removing and installing auxiliary heater bracket

Removing

–	Switch off electrical consumers.

–	Switch off auxiliary and supplementary heater and switch off ignition.

–	Remove auxiliary heater → Chapter.

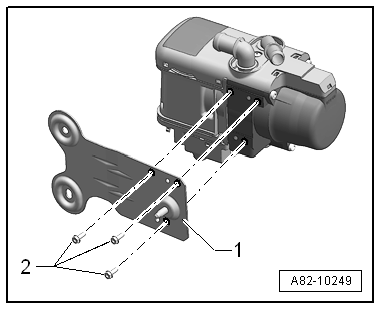

–	Remove bolts -2- and remove bracket -1-.

Installing

–	Install in reverse order.

Specified torque

→ Chapter „Assembly overview - auxiliary heater attachments“
