Volkswagen Golf Service & Repair Manual: Removing and installing covers for auxiliary heater control unit -J364

Volkswagen Golf Service & Repair Manual / Auxiliary heater / Aux. heater/heater booster / Auxiliary heater / Removing and installing covers for auxiliary heater control unit -J364

Removing

–	Switch off electrical consumers.

–	Switch off auxiliary and supplementary heater and switch off ignition.

–	Remove auxiliary heater → Chapter.

–	Dismantle auxiliary heater as far as necessary to gain access to covers for auxiliary heater control unit -J364- → Chapter.

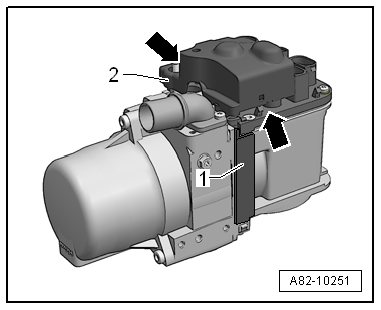

–	Detach cable cover -1- from blower housing.

–	Unclip covers for auxiliary heater control unit -J364--2--arrows- to remove.

–	Dismantling heater unit → Chapter.

–	Removing and installing glow plug with flame monitoring -Q8- → Chapter.

–	Remove temperature sensor -G18- and overheating sensor -G189-.

Installing

–	Renew seals.

Removing and installing covers for auxiliary heater control unit -J364

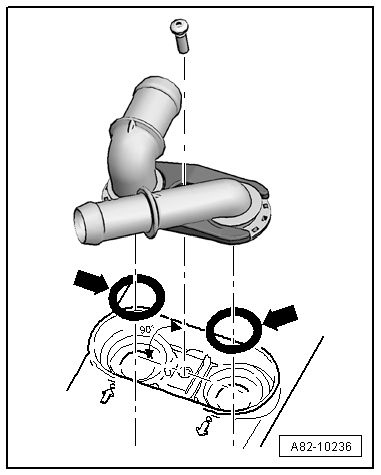

–	Check that seals -arrows- are not damaged and are seated correctly.

–	Check sealing surfaces for dirt and damage.

–	Before installing cover, lightly coat seals with coolant.

–	Remaining installation steps are performed in reverse order of removal.

Specified torque

→ Chapter „Assembly overview - auxiliary heater attachments“

Removing and installing covers for auxiliary heater control unit -J364

Removing and installing auxiliary heater bracket

Removing – Switch off electrical consumers. – Switch off auxiliary and supplementary heater and switch o ...

Removing and installing glow plug with flame monitoring -Q8

Removing – Dismantling and assembling auxiliary heater → Chapter. ...
