Volkswagen Golf Service & Repair Manual: Overview - rear axle, multi-link suspension, four-wheel drive

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Rear suspension, drive shaft / Rear axle / Overview - rear axle, multi-link suspension, four-wheel drive

Overview - rear axle, multi-link suspension, four-wheel drive

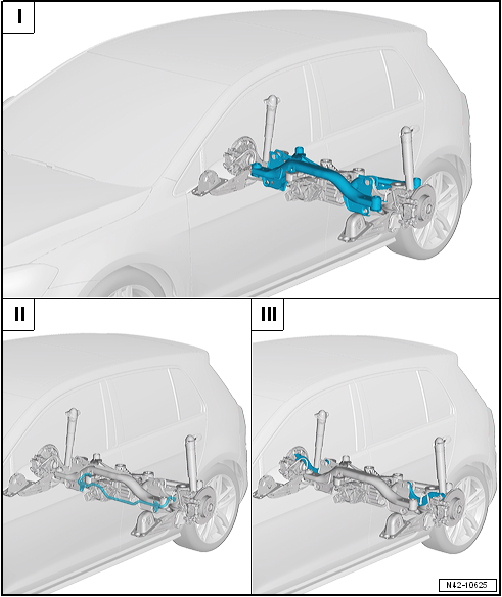

I -  → Chapter „Subframe“
II -  → Chapter „Anti-roll bar“
III -  → Chapter „Suspension link, track rod“




Overview - rear axle, multi-link suspension, four-wheel drive

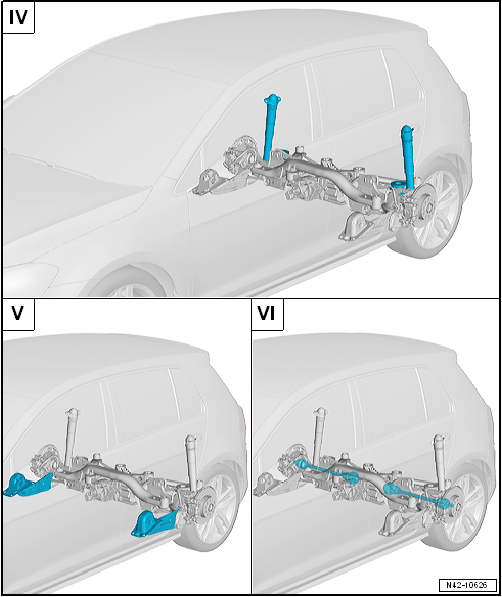

IV -  → Chapter „Suspension strut, shock absorber, spring“
V -  → Chapter „Wheel bearing assembly, trailing arm“
VI -  → Chapter „Drive shaft“
Overview - rear axle, multi-link suspension
I -  → Chapter „Subframe“ II -  → Chapter „Anti-roll bar“ III -  → Chapter „Sus ...

Lowering rear axle, multi-link suspension, front-wheel drive, except for e-Golf
Special tools and workshop equipment required Assembly tool -3301- Assembly tool -3346- Torque wrench -V.A.G 1332- ...

Other materials:

Overview of fitting locations – fuse box, battery (vehicles with high-voltage system)
1 -  Battery -A- Removing and installing → Chapter Disconnecting and connecting → Chapter 2 -  Bolt 3.5 Nm 3 -  Nut 7.5 Nm ...

Removing and installing underbody heat shield
  Note The removal and installation procedures may have to be modified slightly depending on engine fitted. Removing –  Removing centre underbody panel → Chapter. –  Removing front tunnel cross-piec ...

Test prerequisites
Radiator and condenser must be clean (clean them if necessary). The heat insulation on expansion valve is OK and properly installed. See vehicle-specific repair manual → Rep. gr.87. The poly V ...
