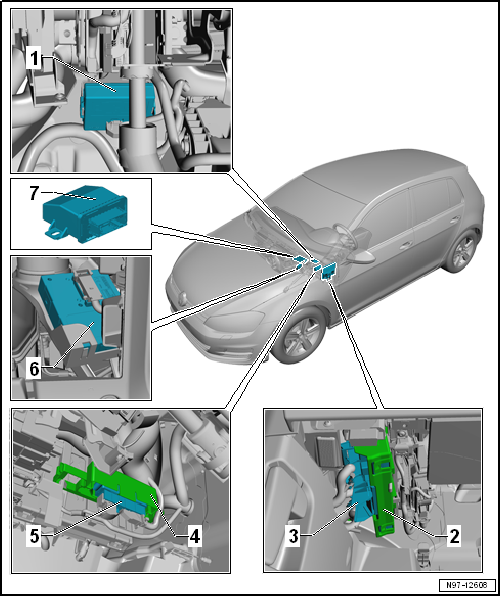

Overview of fitting locations – control units, front of LHD vehicles

1 -  Data bus diagnostic interface -J533-
Assembly overview → Chapter
2 -  Bracket
Assembly overview → Chapter
3 -  Onboard supply control unit -J519-
Assembly overview → Chapter
4 -  Bracket
Assembly overview → Chapter
5 -  Parking aid control unit -J446- or park assist steering control unit -J791-
Assembly overview → Chapter
6 -  Interface for entry and start system -J965-
Assembly overview → Chapter
7 -  Headlight range control unit -J431-/control unit for cornering light and headlight range control -J745-
Assembly overview → Chapter
Control units
...

Overview of fitting locations – control units, front of RHD vehicles
1 -  Headlight range control unit -J431-/control unit for cornering light and headlight range control -J745- Assembly overview → Chapter ...
