Volkswagen Golf Service & Repair Manual: Overview - drive shaft

Overview - drive shaft

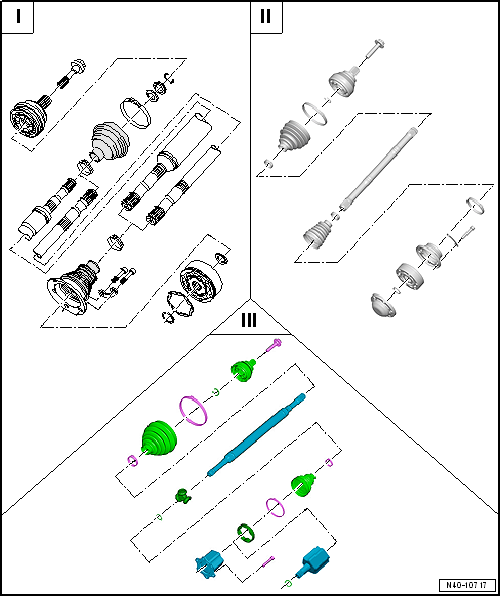

I -  → Chapter „Assembly overview - drive shaft, constant velocity joint VL100“
II -  → Chapter „Assembly overview - drive shaft, constant velocity joint VL107“
III -  → Chapter „Assembly overview - drive shaft, triple roller joint AAR3300i“



Distinguishing between drive shafts when installed
  VL100 VL107 AAR3300i inserted AAR3300i bolted
Diameter of inner joint in mm 100 107 - -
Cover between inner joint and drive flange - X - -
Inner joint pushed into gearbox (only automatic gearbox) - - X -
Drive shaft
...

Assembly overview - drive shaft, constant velocity joint VL100
1 -  Outer constant velocity joint Renew only as complete unit Removing → Anchor. Installing: drive onto sha ...
