Volkswagen Golf Service & Repair Manual: Removing and installing amplitude modulation (AM) frequency filter -R177-

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Aerial systems / Removing and installing amplitude modulation (AM) frequency filter -R177-

Special tools and workshop equipment required

Torque wrench -V.A.G 1783-
Removing
–  Switch off ignition and all electrical consumers, and remove ignition key.
–  Remove rear lid trim (bottom) → General body repairs, interior; Rep. gr.70.


Removing and installing amplitude modulation (AM) frequency filter -R177-

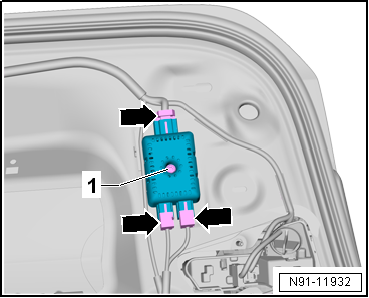

–  Release and detach connectors -arrows- on amplitude modulation (AM) frequency filter -R177-.
–  Remove bolt -1-.


Removing and installing amplitude modulation (AM) frequency filter -R177-

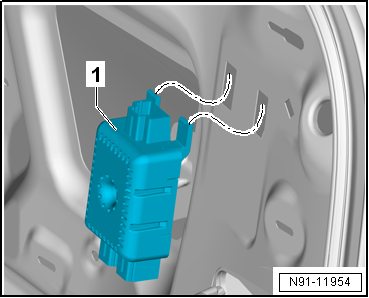

–  Remove amplitude modulation (AM) frequency filter -R177--1- from rear lid taking locking lugs into account.
Installing
Install in the reverse order of removal. When doing this, note the following:


Removing and installing amplitude modulation (AM) frequency filter -R177-

Specified torques
Component Specified torque
Securing bolt on amplitude modulation (AM) frequency filter -R177- 6 Nm
