Volkswagen Golf Service & Repair Manual: Identification
Engine number, engine data |
|
|
|

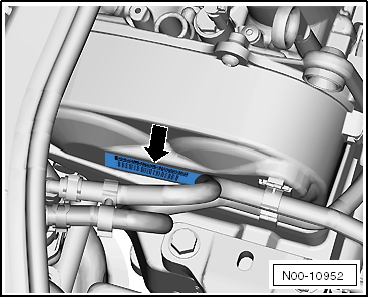

The engine code and the engine number are located on the
sticker -arrow- on the upper
toothed belt guard. |
The engine code is also on the vehicle data sticker and on
the crankcase above the gearbox. |
The engine number consists of up to nine characters
(alphanumeric). The first part (maximum 3 characters) makes up
the “engine code”, and the second part (6 characters), the
“serial number”. If more than 999,999 engines were produced with
the same code letters, the first of the six digits is replaced
by a letter. |
Vehicles with four digit engine codes |
Starting with the letter “C”, new four digit engine codes
have been introduced. The first 3 digits denote the mechanical
design of the engine and are stamped on the engine as before.
The fourth digit denotes the performance and torque rating of
the engine and depends on the engine control unit -J623-. The
four digit engine code can be found on the identification plate,
the vehicle data sticker and on the engine control unit. |
Note
Fitting locations of vehicle data sticker
→ Booklet. |
|
|
|
Engine codes |
CPTA |
CHPA |
CMBA |
CXSA |
CPVA |
Manufactured |
06.12 ► |
06.12 ► |
06.12 ► |
06.13 ► |
11.12 ► |
Emission standards |
EU5 |
EU5 |
EU5 |
EU5 |
EU5 |
Capacity |
cm3 |
1395 |
1395 |
1395 |
1395 |
1395 |
Output |
kW at rpm |
103/4500-6000 |
103/4500-6000 |
90/5000-6000 |
90/5000-6000 |
90/5000-6000 |
Torque |
Nm at rpm |
250/1500-3500 |
250/1500-3500 |
200/1400-4000 |
200/1400-4000 |
200/1400-4000 |
Bore |
Diameter in mm |
74.5 |
74.5 |
74.5 |
74.5 |
74.5 |
Stroke |
mm |
80.0 |
80.0 |
80.0 |
80.0 |
80.0 |
Compression ratio |
10.5 |
10.5 |
10.0 |
10.5 |
10.5 |
Valves
per cylinder |
4 |
4 |
4 |
4 |
4 |
RON |
min. |
95 unleaded (in
exceptional circumstances min. 91 RON, however with reduced performance) |
95 unleaded (in
exceptional circumstances min. 91 RON, however with reduced performance) |
95 unleaded (in
exceptional circumstances min. 91 RON, however with reduced performance) |
95 unleaded (in
exceptional circumstances min. 91 RON, however with reduced performance) |
Bioethanol E85
1) or 95 unleaded |
Injection, ignition system |
Motronic ME 17 |
Motronic ME 17 |
Motronic ME 17 |
Motronic ME 17 |
Motronic ME 17 |
Firing
order |
1-3-4-2 |
1-3-4-2 |
1-3-4-2 |
1-3-4-2 |
1-3-4-2 |
1) E85 means that up to 85% bioethanol
may be contained in the fuel. Each mixture ratio below 85% is
permissible. |
Engine codes |
CZEA |
CZDA |
CZCA |
CPVB |
Manufactured |
05.14 ► |
05.14 ► |
05.14 ► |
05.14 ► |
Emission standards |
EU6 |
EU6 |
EU6 |
EU6 |
Capacity |
cm3 |
1395 |
1395 |
1395 |
1395 |
Output |
kW at rpm |
110/5000-6000 |
110/5000-6000 |
92/5000-6000 |
92/5000-6000 |
Torque |
Nm at rpm |
250/1500-3500 |
250/1500-3500 |
200/1400-4000 |
200/1400-4000 |
Bore |
Diameter in mm |
74.5 |
74.5 |
74.5 |
74.5 |
Stroke |
mm |
80.0 |
80.0 |
80.0 |
80.0 |
Compression ratio |
10.0 |
10.0 |
10.0 |
10.0 |
Valves
per cylinder |
4 |
4 |
4 |
4 |
RON |
min. |
95 unleaded (in
exceptional circumstances min. 91 RON, however with reduced performance) |
95 unleaded (in
exceptional circumstances min. 91 RON, however with reduced performance) |
95 unleaded (in
exceptional circumstances min. 91 RON, however with reduced performance) |
Bioethanol E85
1) or 95 unleaded |
Injection, ignition system |
Motronic ME 17 |
Motronic ME 17 |
Motronic ME 17 |
Motronic ME 17 |
Firing
order |
1-3-4-2 |
1-3-4-2 |
1-3-4-2 |
1-3-4-2 |
1) E85 means that up to 85% bioethanol
may be contained in the fuel. Each mixture ratio below 85% is
permissible. |
