Volkswagen Golf Service & Repair Manual: Evacuation and charging valve with Schrader valve

  Note
Torque wrench -V.A.G 1783- with 1/4" ratchet adapter -VAS 6234-
Appropriate insert -T10364- to remove Schrader valve core → Fig.

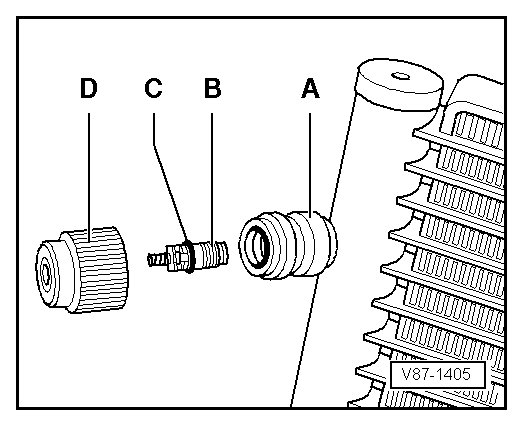

A -  Service port (soldered in)
B -  Valve core (2.4 ± 0.2 Nm)
C -  O-ring (for the valve)
D -  Sealing cap with seal


Evacuation and charging valve with Schrader valve

Evacuation and charging valves for quick-release couplings of air conditioner service station on refrigerant circuit
Special tools and workshop equipment required Torque wrench -V.A.G 1783- (2…10 Nm) with 1/4" ratchet adapter -VAS 6234- ...
