Note

Observe the latest operating instructions for vehicle diagnosis tester, which are displayed after selecting the “Administration” and “Operating Manual” keys.

Special tools and workshop equipment required

Vehicle diagnostic tester

Connecting vehicle diagnostic tester

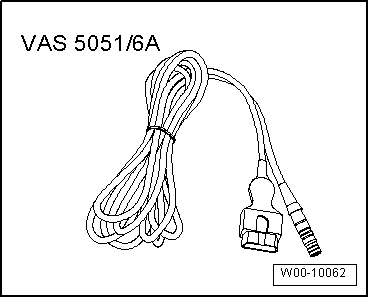

Diagnostic cable -VAS 5051/6A- (5 m)

Diagnostic cable -VAS 5051/5A- (3 m)

Note

Only these cables are to be used for diagnosis, as they are the only ones fitted with CAN wiring and therefore allowing CAN diagnosis and/or CAN communication.

Connecting vehicle diagnostic tester:

–	Apply handbrake.

–	Vehicles with automatic gearbox, move selector lever to position “P” or “N”.

–	Vehicles with manual gearbox, move gear lever to neutral position.

Connecting vehicle diagnostic tester

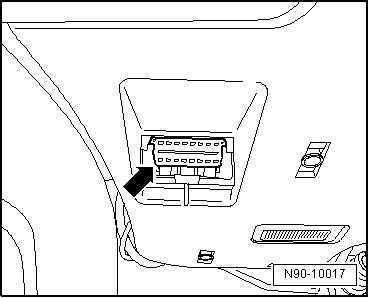

–	With ignition switched off, connect vehicle diagnosis tester using diagnostic cable -VAS 5051/6A- to diagnostic interface -arrow- in vehicle.

–	Switch on ignition.

–	Switch off all electrical consumers.

Note

All other and the following vehicle diagnostic, testing and information systems or vehicle diagnostic and service information systems are connected accordingly in the sequence described above.
