Special tools and workshop equipment required

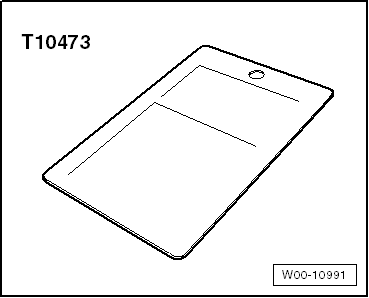

Sensor gauge -T10473-

Procedure

Wheel bearing unit is removed.

Checking ABS sensor ring

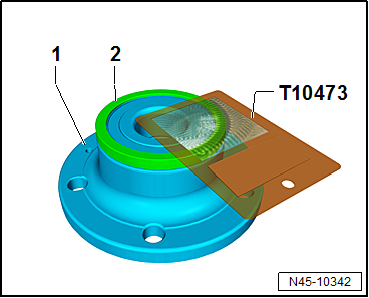

–	Using sensor gauge -T10473-, check ABS sensor ring -2- all round, as shown in illustration.

1 -	Wheel bearing unit

2 -	Seal with integrated ABS sensor ring

Checking ABS sensor ring

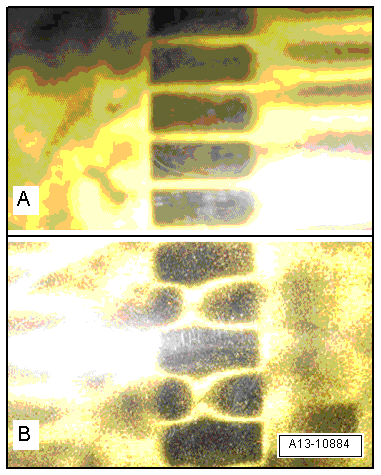

Test pattern for ABS sensor ring:

A -	ABS sensor ring is OK

B -	ABS sensor ring is defective
