Volkswagen Golf Service & Repair Manual: Auxiliary heater mode

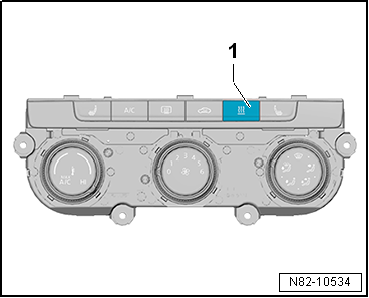

| Switching on auxiliary heater mode in vehicles with manual
air conditioning: |
| – |
Press instant heating button-1-. |
|
|
|

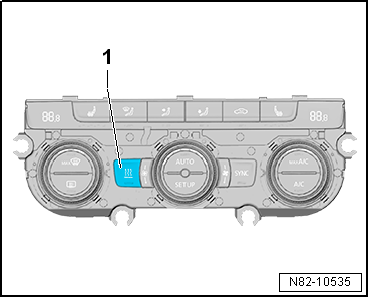

| Switching on auxiliary heater mode in vehicles with
Climatronic: |
| – |
Press instant heating button-1-. |
 Note
| Once the coolant temperature has reached approx. 82 °C, the
control unit switches to energy-saving control mode. If the
coolant temperature continues to rise above approx. 88 °C, the
control unit switches to the controlled waiting period. If the
coolant temperature does not drop below approx. 70 °C within
15 minutes during the controlled waiting period, the heater unit
will initiate the start procedure into the standard control mode
when the coolant temperature does drop below approx. 65 °C. |
|
|
|
Once the coolant temperature has reached approx. 84 °C, the
control unit switches to energy-saving control mode. If the
coolant temperature continues to ri ...
If the button instant heat button has been pressed, or after
the preset operating time has expired or the coolant has reached
a temperature of 88° C, the combus ...
