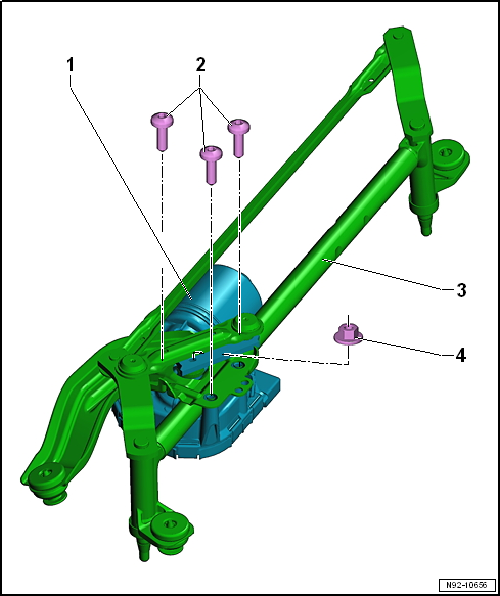

Assembly overview – wiper motor and wiper frame

1 -	Wiper motor

Removing and installing → Chapter

2 -

Bolts

Qty. 3

Specified torque: 9 Nm - 1 Nm

3 -	Wiper frame

Removing and installing → Chapter

4 -

Nut

Specified torque: 25 Nm - 1 Nm

Assembly overview - windscreen wiper system
