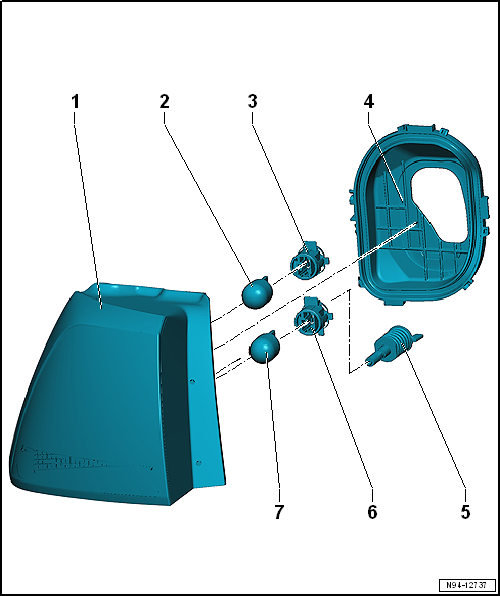

Assembly overview - tail lights in vehicle body, with bulbs

1 -  Left tail light -MX3-/right tail light -MX4-
Tail light in body
Removing and installing → Chapter
2 -  Brake and tail light bulb
Left brake and tail light bulb -M21-
Right brake and tail light bulb -M22-
Removing and installing → Chapter
3 -  Bulb holder
4 -  Cover, with seal
5 -  Securing element
Specified torque: 2 Nm
6 -  Bulb holder
7 -  Rear turn signal bulb
Rear left turn signal bulb -M6-
Rear right turn signal bulb -M8-
Removing and installing → Chapter
Tail lights
...

Assembly overview - tail lights in vehicle body, with LEDs
1 -  Securing element Specified torque: 2 Nm 2 -  Seal Self-adhesive Renew if damaged. ...
