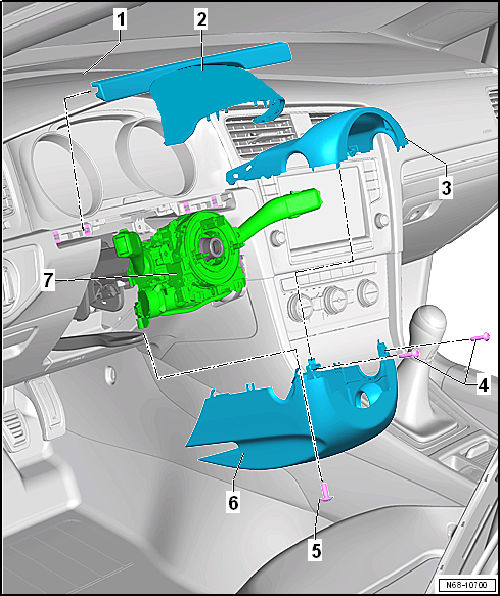

Volkswagen Golf Service & Repair Manual: Assembly overview - steering column trim
| 1 - | Dash panel |
- Assembly overview → Chapter
| 2 - | Gap cover |
- Removing and installing → Chapter
| 3 - | Upper steering column trim |
- Removing and installing → Chapter
- Press until it audibly engages
| 4 - | Bolt |
- Qty. 2
- 2.5 Nm
| 5 - | Bolt |
- 2.5 Nm
| 6 - | Lower steering column trim |
- Removing and installing → Chapter
| 7 - | Steering column switch module |
- Assembly overview → Electrical system; Rep. gr.94
