Volkswagen Golf Service & Repair Manual: Assembly overview - glove compartment

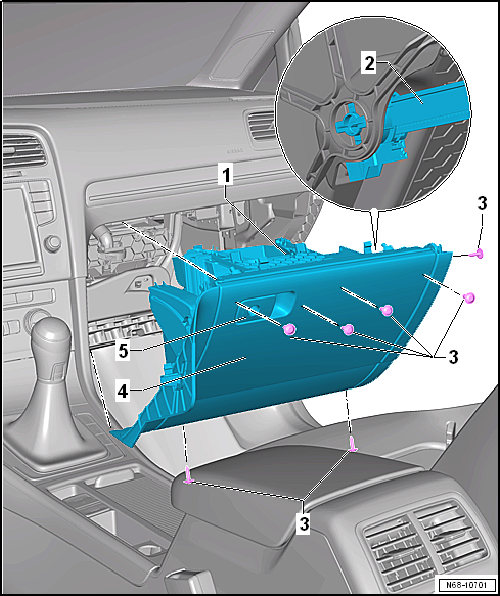

| 1 - | Glove compartment |
- Removing and installing → Chapter
| 2 - | Damper element |
- For glove compartment lid
- With glove compartment light switch -E26-
- Removing and installing → Chapter
| 3 - | Bolt |
- Qty. 7
- 1.5 Nm
| 4 - | Glove compartment lid |
- Removing and installing → Chapter
| 5 - | Glove compartment opener |
- Removing and installing → Chapter
Assembly overview - steering column trim
1 -
Dash panel
Assembly overview
→ Chapter
2 -
Gap cover
Removing and installing
→ Chapter
3& ...
Assembly overview - storage compartment in roof headliner
1 -
Storage compartment
Removing and installing
→ Chapter
2 -
Cover
3 -
Bolt
Qty. 4
1.5& ...
