Volkswagen Golf Service & Repair Manual: Assembly overview - short noise insulation

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Exterior equipment / Noise insulation / Assembly overview - short noise insulation

Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

Assembly overview - short noise insulation

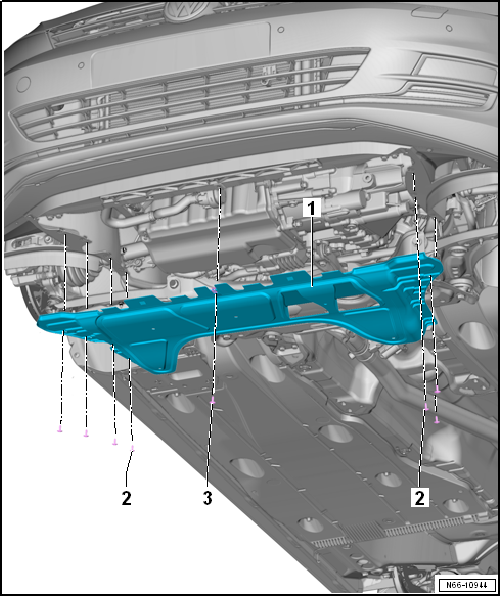

1 -	Short noise insulation

Removing

–	Remove bolts -2- and -3-

–	Pull out noise insulation off lock carrier to the back.

2 -

Bolt

Qty. 3 on left
Qty. 4 on right
2.0 Nm

3 -

Bolt

1 on lock carrier
1 Nm

Noise insulation

...

Assembly overview - long noise insulation

Note The removal and installation procedures may have to be modified slightly depending on engine fitted. 1 - Short noise insulation Rem ...
