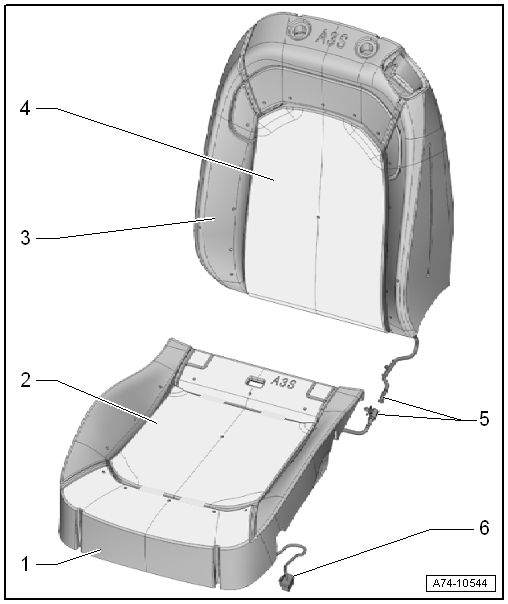

Volkswagen Golf Service & Repair Manual: Assembly overview - seat heating element
| 1 - | Seat padding |
- Allocation → Electronic Parts Catalogue
| 2 - | Heater element |
- Driver seat: heated seat cushion for front passenger seat -Z6-
- Front passenger seat: heated seat cushion for front passenger seat -Z8
- Allocation → Electronic Parts Catalogue
- Renew after removal → Chapter.
| 3 - | Backrest padding |
- Allocation → Electronic Parts Catalogue
| 4 - | Heater element |
- Driver seat: heated backrest for driver seat -Z7
- Front passenger seat: heated backrest for front passenger seat -Z9-.
- Allocation → Electronic Parts Catalogue
- Renew after removal → Chapter
| 5 - | Electrical wiring |
| 6 - | Electrical wiring |
Assembly overview - cover and padding for backrest
1 -
Upholstery clip
For attaching backrest cover to backrest padding
Renew after removal
When installing, fit in same location using upholstery clip pliers
- ...
Removing and installing seat cover and seat padding for seat pan
Special tools and workshop equipment
required
Removal wedge -3409
...
Other materials:
Removing and installing high-voltage heater (PTC) -Z115- / high-voltage
heater (PTC) -J848
Special tools and workshop equipment
required
Commercially available Torx socket bit “TS30H” with hole in
front face
Hose clamps, up to 25 mm -3094-
Engine bung set -VAS 6122- ...
Safety precautions when working on fuel supply system
Risk of injury due to highly-pressurised fuel.
The fuel system is under high pressure. Risk of injury due to fuel
which may spurt out.
–
Release high pressure before opening the fuel system.
& ...
Detecting leaks in refrigerant circuit using leak detecting system -VAS
6196- or leak detecting system -VAS 6201- or a later model
Note
Small leaks can be detected with, for example, an UV leak
detector additive.
–
Evacuate refrigerant circuit using an air conditioner
service station
→ Chapter.
Note
...
