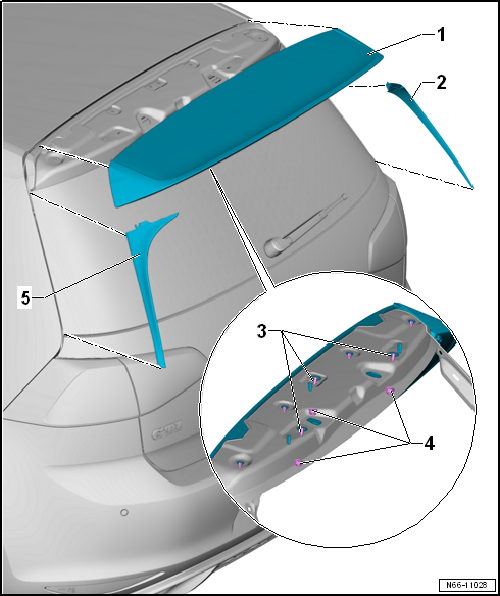

Assembly overview - roof spoiler

1 -	Roof spoiler

Material PC/PET
With foam strip serving as intermediate piece
With 4 fasteners with foam ring
Removing and installing → Chapter

2 -	Right side spoiler

With adhesive tape
Removing and installing → Chapter.

3 -	Hexagon nut

Qty. 3
6.0 Nm

4 -

Clip

Qty. 4

5 -	Seal for clip

Qty. 4

6 -	Centring pin

Qty. 3

7 -	Seal for centring pin

Qty. 3

8 -

Stud

Qty. 3.
Part of roof spoiler

9 -	Seal for stud

Qty. 3

10 -	Adhesive tape

Part of side spoiler

11 -	Left side spoiler

With adhesive tape
Removing and installing → Chapter

12 -	Protective film

13 -	Protective film
