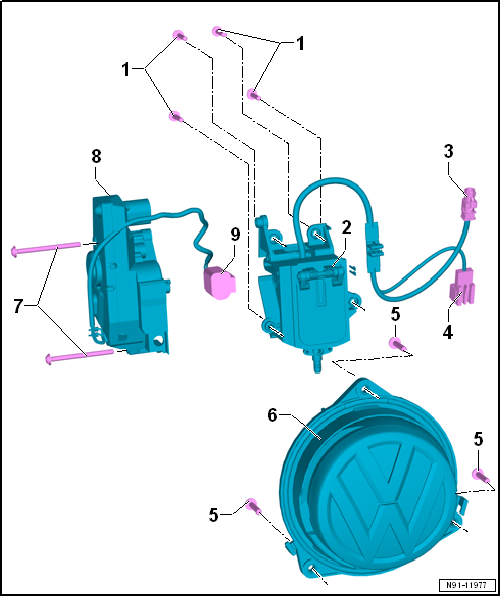

Assembly overview - reversing camera system

1 -

Bolt

Qty. 4

2.5 Nm

2 -	Swivel motor

Removing and installing → Anchor.

3 -

Connector

4 -

Connector

5 -

Bolt

Qty. 3

4 Nm

6 -	Swivel badge with reversing camera -R189-

Removing and installing → Anchor.

7 -

Bolt

Qty. 2

1.6 Nm

8 -	Reversing camera housing

Removing and installing → Anchor.

9 -

Connector
