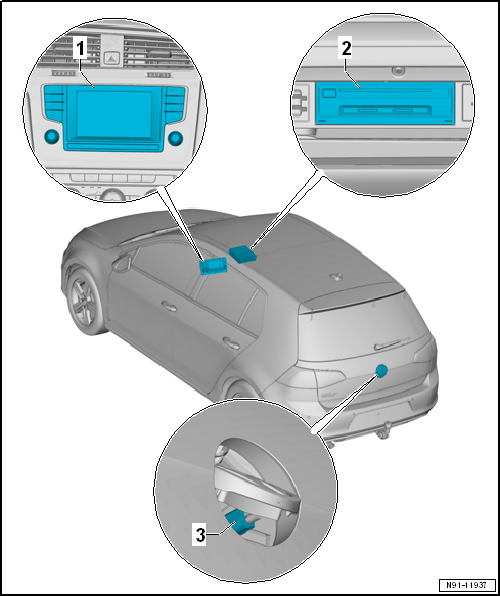

Overview of fitting locations - reversing camera system

1 -  Display unit for control device of front display and information control panel -J685-
In front of centre console.
Removing and installing → Chapter.
2 -  Control unit 1 for information electronics -J794-
In glove compartment.
Removing and installing → Chapter
3 -  Reversing camera -R189-
Swivel badge with reversing camera -R189- and swivel motor in rear lid
Removing and installing → Chapter.
Components of reversing camera system
The reversing camera system supports the driver during reversing by providing the driver with an image of the traffic situation behind the vehicle via display unit fo ...

Assembly overview - reversing camera system
1 -  Bolt Qty. 4 2.5 Nm 2 -  Swivel motor Removing and installing → Anchor. ...
