Volkswagen Golf Service & Repair Manual: Assembly overview - rear window wiper system

Volkswagen Golf Service & Repair Manual / Electrical system / Windscreen wipe/ wash system / Rear window wiper system / Assembly overview - rear window wiper system

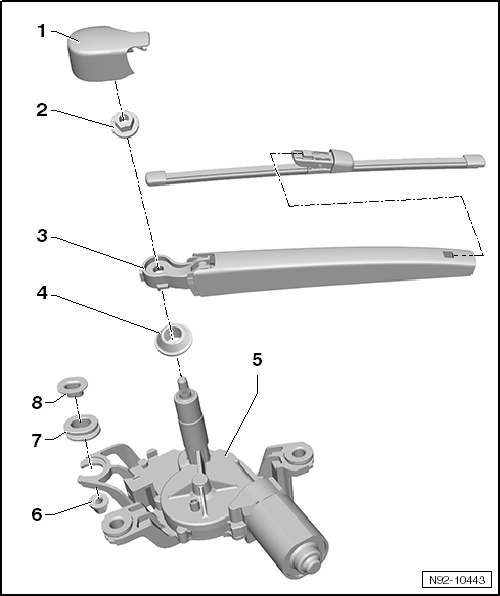

Assembly overview - rear window wiper system

1 -

Cap

2 -

Nut

Specified torque: 12 Nm

3 -	Wiper arm with joint-free wiper

Removing and installing → Chapter

Adjusting park position → Chapter

Removing and installing joint-free wipers → Chapter.

4 -

Seal

In rear window

Renew if damaged → Chapter.

Removing and installing → Chapter

5 -	Rear window wiper motor -V12-

Removing and installing → Chapter

6 -	M6 nut with washer

Qty. 3

Specified torque: 8 Nm

7 -	Rubber ring

Qty. 3

8 -

Spacer

Qty. 3

Rear window wiper system

...

Removing and installing wiper blade

Caution Risk of damage to the wiper blade. Joint-free wipers are very flexible. To lift the ...
