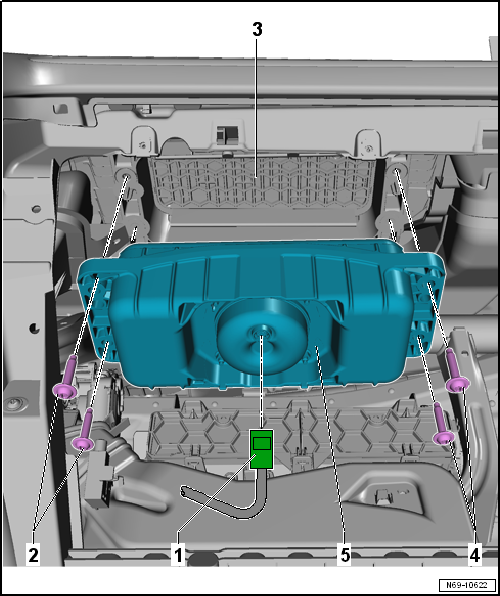

Assembly overview - front passenger side airbag

1 -	Electrical connections

For front passenger side airbag igniter 1 -N131

2 -

Bolts

Qty. 2
Clean prior to reinstalling
Use with locking fluid D 197 300 A2.
8 Nm

3 -	Dash panel

Renew dash panel after airbag has deployed → Chapter

4 -

Bolts

Qty. 2
Clean prior to reinstalling
Use with locking fluid D 197 300 A2
8 Nm

5 -	Front passenger side airbag

With front passenger side airbag igniter 1 -N131-

WARNING

Observe safety instructions for pyrotechnic components → Chapter.

Note allocation of airbag unit to dash panel → Electronic Parts Catalogue.

Can be locked and activated via key-operated switch

Removing and installing → Chapter

Front passenger side airbag

...

Removing and installing front passenger airbag unit with front passenger side airbag igniter 1 -N131-

Removing WARNING Observe safety instructions for pyrotechnic ...
