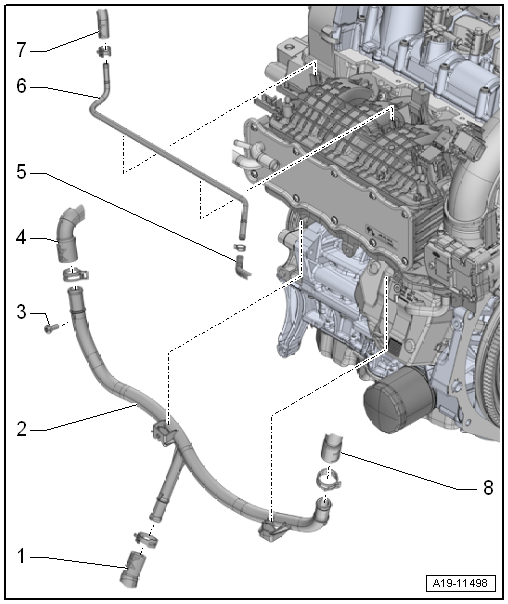

Assembly overview - coolant pipes

1 -	Coolant hose

2 -	Coolant pipe

Clipped onto intake manifold (bottom)

To remove, remove intake manifold → Chapter.

3 -

Bolt

8 Nm

4 -	Coolant hose

5 -	Coolant hose

6 -	Coolant line

Clipped onto intake manifold (top)

7 -	Coolant hose

8 -	Coolant hose
