Volkswagen Golf Service & Repair Manual: Assembly overview - speed sensor on rear axle, all-wheel drive

Volkswagen Golf Service & Repair Manual / Brake system / ABS, ADR, TCS, EDL, ESP / Sensors / Assembly overview - speed sensor on rear axle, all-wheel drive

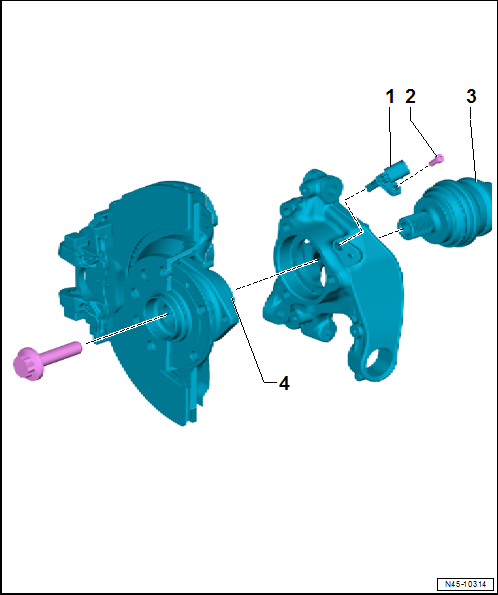

Assembly overview - speed sensor on rear axle, all-wheel drive

1 -  ABS speed sensor
Clean inside surface of hole before inserting sensor
Coat inside surface with high-temperature paste -G 052 112 A3-
Removing and installing → Chapter
2 -  Bolt
8 Nm
3 -  Drive shaft
Assembly overview → Running gear, axles, steering; Rep. gr.42.
Removing and installing → Running gear, axles, steering; Rep. gr.42.
4 -  Wheel hub with wheel bearing unit
The ABS sensor ring is integrated in the wheel bearing unit.
Check ABS sensor ring → Chapter
Removing and installing → Running gear, axles, steering; Rep. gr.42
Assembly overview - speed sensor on rear axle, front-wheel drive
1 -  ABS speed sensor Clean inside surface of hole before inserting sensor Coat inside surface with high-temperature paste -G 052 112 A3- ...

Removing and installing ESP sensor unit -G419-
The lateral acceleration sender -G200-, the yaw rate sender -G202- and the longitudinal acceleration sender -G251- are installed together with the control unit for el ...
