Note

On vehicles with ACC, the trim in the right-hand cover of the front bumper must not be painted during a repair paint job or replacement. The ACC system located behind can become operational due to the thickness of the added paint layer.

The cover over the distance control sensor in the bumper grille consists of radar-permeable material. The cover is heatable, in order to prevent functions from being impaired by snow and ice.

All changes to the surface, such as retrospective paintwork, stickers and other retrospectively applied objects may result in functional impairment.

Control unit for proximity control -J428-

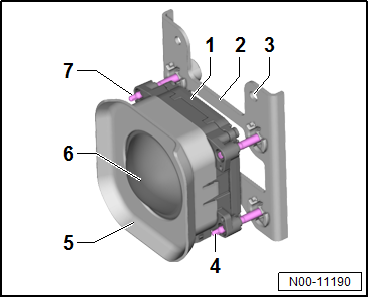

The illustration shows the adaptive cruise control unit -J428- on the Golf. The control unit on other vehicle models may differ from that shown in the illustration.

1 -	Adapter plate

2 -

Holder

3 -	Locating hole

4 -	Vertical adjusting screw

5 -

Trim

6 -	Adaptive cruise control sender/adaptive cruise control unit

7 -	Horizontal adjusting screw

Painting parking aid sensor

To avoid malfunctions in the parking aid sensor, always observe the following when painting: Painting new parts M ...
