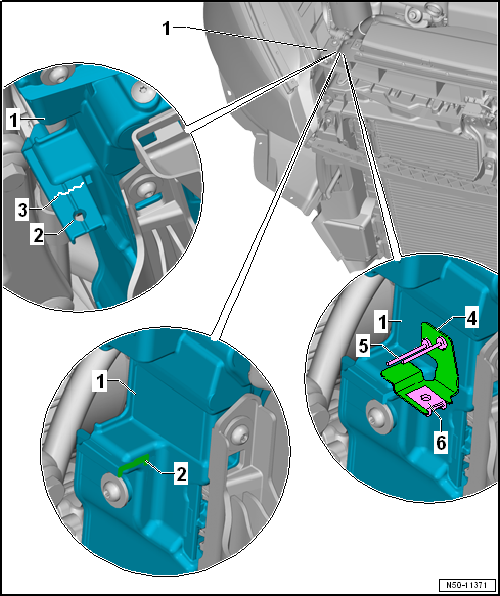

Line -3- indicates the position where the tab might break off.

Repairing lock carrier. Right headlight mounting

–  Remove front bumper cover → Chapter.
–  Remove headlights → Electrical system; Rep. gr.94.
–  Make a straight cut to cut or saw headlight mounting -2- off lock carrier -1-.
–  Fit new retaining bracket -4- with speed nut -6-.
–  Fit pop rivets -5-.
