Volkswagen Golf Service & Repair Manual: Removing and installing window channel
| Removing and installing window channel |
 Note
| |
The removal and installation sequence is only for the
left window channel. Removal and installation of the right
window channel are similar. |
| |
Do not bend window channel when removing! |
|
|
|
| – |
Remove window slot inner seal
→ Chapter. |
| – |
Remove window slot outer seal
→ Chapter. |
| – |
Remove C-pillar trim
→ Chapter. |
| – |
Remove exterior mirror
→ Chapter |
| – |

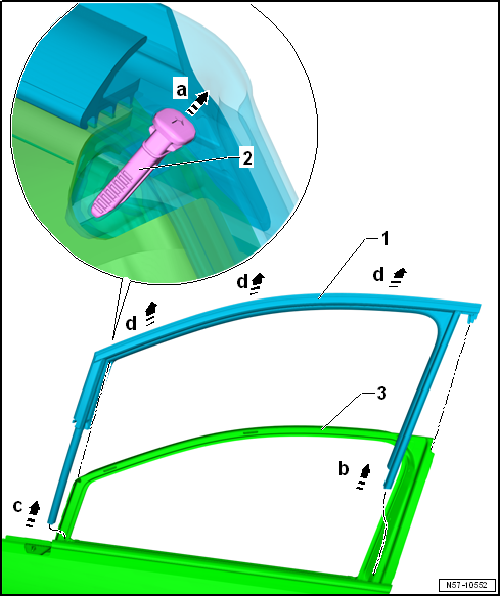

Pull out securing pin -2--arrow a-. |
| – |
Peel sealing lip of window channel -1-
off the door flange from the inside. |
| – |
Pull window channel -1- out of
mountings on door -arrows b and c-. |
| – |
Pull window channel -1- off door flange
-3- uniformly around entire circumference
-arrows d-. |
| – |
Spray window channel with soapy water to facilitate installation. |
| – |

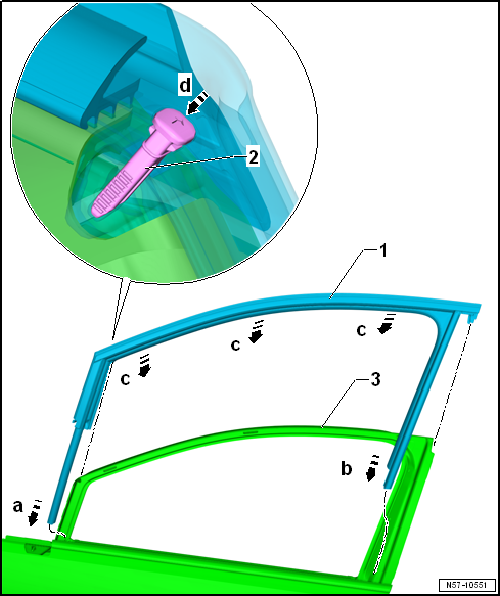

Insert window channel -1- into
mountings on door -arrows a and b-. |
| – |
Push window channel -1- from rear
towards front onto door flange -arrows c-. |
| – |
Fold sealing lip of window channel onto door flange from the inside. |
| – |
Insert securing pin -2--arrow d-. |
Note
| To prevent wind noise, ensure window channel
-1- seats evenly when installing. |
| Further installation is performed in the reverse order of removal. |
