Volkswagen Golf Service & Repair Manual: Removing and installing tie-down rings

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Trim, noise insulation / Luggage compartment trims / Removing and installing tie-down rings

Note

Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate.

Special tools and workshop equipment required

Torque wrench -V.A.G 1783

Removing

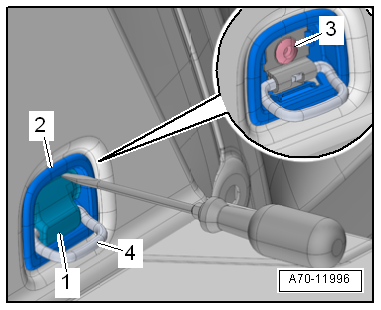

–	Fold down bar -4- and unclip cover -1- using a screwdriver.

–	Unscrew bolt -3- and remove tie-down ring -2-.

Installing

Installation is carried out in reverse order.

Specified torques

→ Chapter „Assembly overview - luggage compartment side trim“

Removing and installing tie-down rings

Removing and installing rear shelf support

Note Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate. ...

Removing and installing support for luggage compartment floor, saloon

Note Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate. ...
