Volkswagen Golf Service & Repair Manual: Removing and installing retainer for digital sound package control unit -J525-

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Sound system / Removing and installing retainer for digital sound package control unit -J525-

Special tools and workshop equipment required

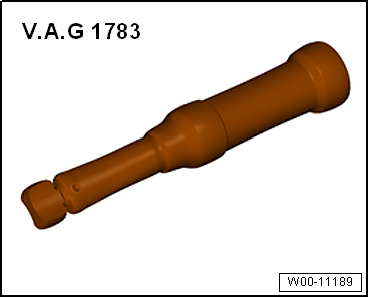

Torque wrench -V.A.G 1783-

Removing

–	Removing digital sound package control unit -J525- → Chapter.

Removing and installing retainer for digital sound package control unit -J525-

–	Fold back floor covering and floor insulation from middle tunnel and floor panel.

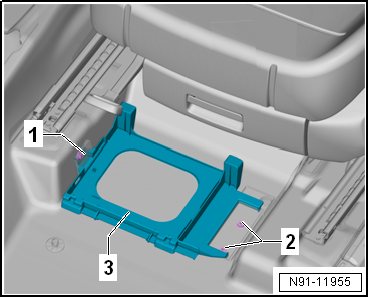

–	Unscrew bolt -1- from middle tunnel and nuts -2- from retainer.

–	Remove retainer from digital sound package control unit -J525--3-.

Installing

Install in the reverse order of removal. When doing this, note the following:

Removing and installing retainer for digital sound package control unit -J525-

Specified torques

Component	Specified torque
Bolt -1-	6 Nm
Nuts -2-	6 Nm
