Intake manifold sender -GX9- consists of:

Intake air temperature sensor 2 -G299-

Intake manifold pressure sender -G71-

Removing

–	Remove air filter housing → Chapter.

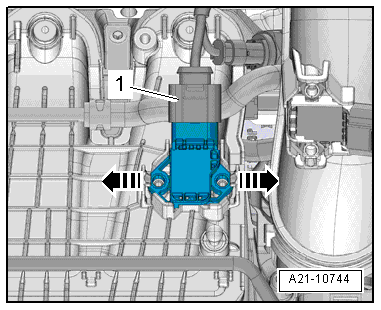

–	Disconnect electrical connector -1-.

–	Release fasteners -arrows-, and remove intake manifold sender -GX9-.

Installing

Installation is carried out in the reverse order; note the following:

Note

Renew O-ring.

If the retaining tabs broke off during removal, the sender can be secured using two securing bolts as per → Electronic Parts Catalogue. Specified torque: → Anchor

Torque

Removing and installing intake manifold sender -GX9-

Component	Specified torque
Intake manifold sender -GX9-	3 Nm

–	Install air filter housing → Chapter.
