Volkswagen Golf Service & Repair Manual: Removing and installing fuel pressure sender -G247-

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Mixture preparation system, electronic inj., Gas / Senders and sensors / Removing and installing fuel pressure sender -G247-

Special tools and workshop equipment required

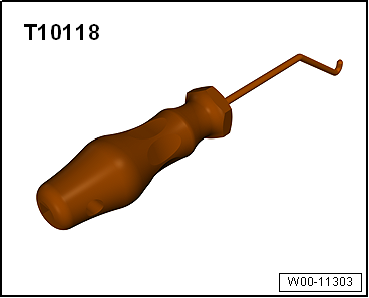

Assembly tool -T10118-

Removing and installing fuel pressure sender -G247-

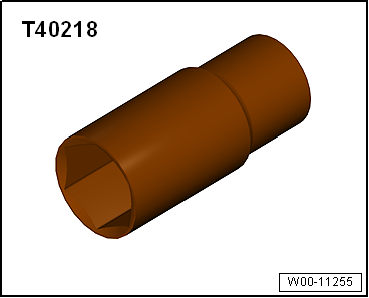

Socket, 27 mm -T40218- or commercially available 27 mm hexagon socket insert

Removing

Removing and installing fuel pressure sender -G247-

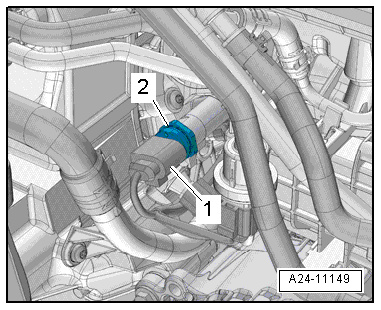

–	Disconnect electrical connector -1-.

Note

Place a cloth underneath to catch escaping fuel.

–	Unscrew fuel pressure sender -G247--2- using socket, 27 mm -T40218-.

Installing

Installation is carried out in the reverse order; note the following:

Note

Do not lubricate thread of fuel pressure sender.

Specified torques

→ Chapter „Assembly overview - fuel rail with injectors“
