Volkswagen Golf Service & Repair Manual: Removing and installing infotainment system display

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Infotainment system / Removing and installing infotainment system display

Special tools and workshop equipment required

Removal wedge -3409-


Removing and installing infotainment system display

Radio release tool -T10057-
Removing
–  Switch off ignition and all electrical consumers, and remove ignition key.
  Caution
Danger of damage to component surfaces.
When using leverage tools, mask visible areas of the component with commercially available adhesive tape.
–  Remove centre dash panel trim → General body repairs, interior; Rep. gr.70


Removing and installing infotainment system display

–  Insert radio release tools -T10057- into slots -1- in display unit for control device of front display and information control panel -J685-.


Removing and installing infotainment system display

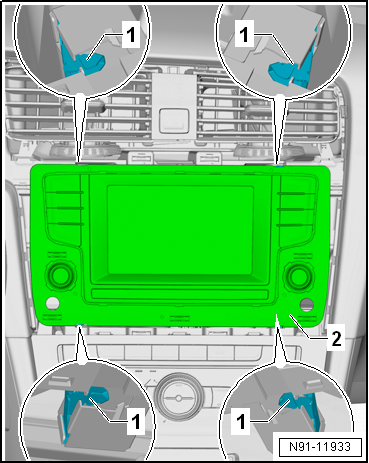

–  Release upper locking mechanisms -1- by pressing them in direction of travel.
–  Release lower locking mechanisms -1- by pressing them in direction of travel.
–  Remove display unit for control device of front display and information control panel -J685--2-.
–  Release and detach connectors.
Installing
Install in the reverse order of removal. When doing this, note the following:
  Caution
Danger of damage to components.
When inserting display unit for control device of front display and information control panel -J685- do not press on the display and the control elements.
–  Press in display unit for control device of front display and information control panel -J685- until it engages.


Removing and installing infotainment system display
