Removing

–	Remove backrest cover and backrest padding → Chapter.

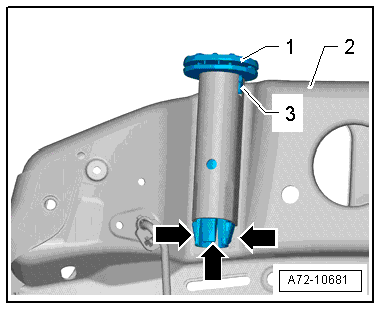

Right head restraint guide

–	Press locking lugs inwards -arrows- and at the same time pull head restraint guide -1- out of backrest frame -2-.

Note

Disregard -item 3-.

Removing and installing head restraint guide

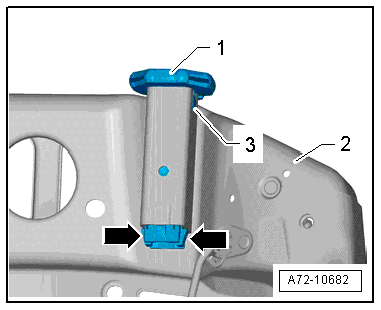

Left head restraint guide

–	Press locking lug inwards -arrows- and at the same time pull head restraint guide -1- out of backrest frame -2-.

Installing

Install in reverse order, but note the following:

Note

The head restraint guide can only be inserted in one position.

The guide lug -3- of head restraint guide must engage in recess in backrest frame mounting.

The locking lug must properly engage in backrest frame.
