Volkswagen Golf Service & Repair Manual: Removing and installing centre console insert

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Centre console / Removing and installing centre console insert

Special tools and workshop equipment required

Torque wrench -V.A.G 1783-

Removing

–	On vehicles with dual clutch gearbox, shift selector lever to position “D/S”.

–	Switch off ignition.

–	Carefully unclip gaiter from centre console and pull it inside out over selector lever/gear lever.

–	Remove front storage compartment → Chapter.

–	Remove left and right centre console cover → Chapter.

Torque wrench -V.A.G 1783-

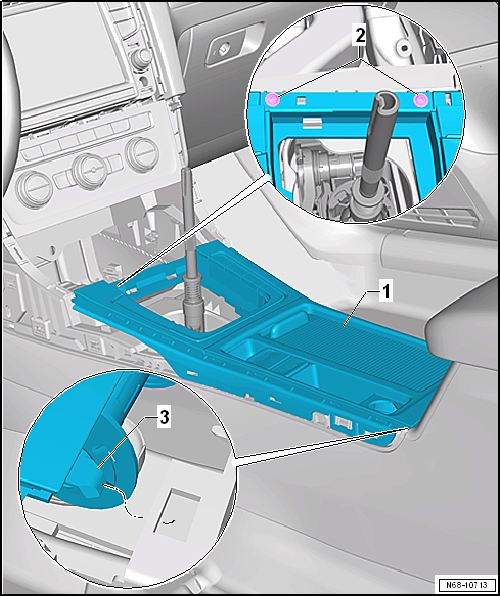

Removing and installing centre console insert

–	Remove bolts -2-.

–	Unclip centre console insert -1- upwards from centre console.

Note

Increased resistance will be encountered when unclipping centre console insert from centre console.

–	Carefully lift up centre console insert and disconnect connectors.

–	Carefully pull centre console insert towards front until locating lug -3- is released. Carefully guide centre console insert over selector lever/gear lever and remove it.

Installing

Note

Before installing, check all fasteners for damage and renew if necessary.

Installation is carried out in reverse order.

Specified torques

→ Chapter „Assembly overview - centre console“

Removing and installing centre console cover

Note Removal and installation is described for the centre console cover on driver side. Follow same instructions for the front passenger side as approp ...

Removing and installing mounting plate with retaining strap

Special tools and workshop equipment required Removal wedge -3409 ...
