Volkswagen Golf Service & Repair Manual: Recommended all-season tyres

Recommended all-season tyres, worldwide except North America and China

Notes regarding the recommended tyres →
→ Chapter „Explanations regarding world regions“
Tyre size Make Tread pattern Remarks
195/65 R 15 91H Goodyear Vector4Season
205/55 R 16 91H Hankook H730 Optimo 4S
  Goodyear Vector4Season
205/50 R 17 93V Continental TS815CS “ContiSeal” self-sealing tyres → Remark

1)  → Running gear, axles, steering workshop manual; Rep. gr.44

Recommended all-season tyres, North America

Notes regarding the recommended tyres →
→ Chapter „Explanations regarding world regions“
Tyre size Make Tread pattern
195/65 R 15 91H Continental Pro Contact
205/55 R 16 91H Continental Pro Contact
  Michelin Primacy MXV 4
  Bridgestone Turanza EL 400-2
  Goodyear Eagle LS2
  Hankook H725A Optimo
225/45 R 17 91H Continental Pro Contact
  Michelin MXM 4
  Goodyear Eagle LS2
225/40 R 18 92H Pirelli P Zero Nero
  Goodyear Eagle LS2

Recommended winter tyres, worldwide except North America and China

Notes regarding the recommended tyres →
→ Chapter „Explanations regarding world regions“
Tyre size Make Tread pattern
195/65 R 15 91H Bridgestone Blizzard LM32
  Dunlop SP Winter Sport 3D
205/55 R 16 91H Bridgestone Blizzard LM32
  Goodyear Ultra Grip Performance
  Pirelli W210
  Dunlop SP Winter Sport 4D
205/50 R 17 93H Dunlop SP Winter Sport 3D
225/40 R 18 92V Dunlop SP Winter Sport 3D

Recommended temporary spare tyres and wheels

Inform your customers about the following notes and, if appropriate, refer also to the user's manual of the vehicle as the need arises.

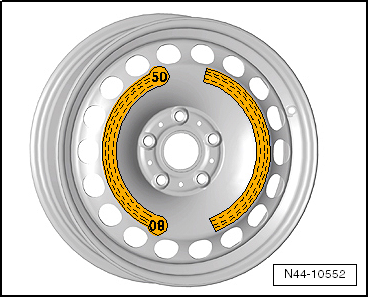

The following notes also apply to spare wheels, e.g. 6.5 J x 16 with 205/55 R 16 tyres, marked with a yellow sticker with the text “MAX 80 km/h” or “MAX 50 mph”.


Recommended temporary spare tyres and wheels

  Note
Depending on the vehicle equipment cars have a spare wheel with the sticker described above instead of a temporary spare wheel.
The spare wheel or temporary spare wheel is intended only for temporary use over short distances. Therefore, it must be replaced by a normal wheel as quickly as possible.
After the temporary or spare wheel has been fitted, the tyre pressure must be checked as soon as possible.
Tyre pressure information is located on the tyre pressure plate on the inside of the tank flap or on the driver side B-pillar.
Always observe the speed warning on the temporary spare wheel (“MAX 80 km/h” or “MAX 50 mph”).
Full acceleration, hard braking and driving fast through curves should be avoided.
Never drive with more than one spare wheel or temporary spare wheel.
The use of snow chains on the temporary spare wheel is not permitted for technical reasons.
If it is necessary to travel with snow chains, the temporary spare wheel must be fitted on the rear axle even if the front tyre has been damaged. The now available rear wheel must then be fitted in place of the defective front wheel.
Refer to → Electronic parts catalogue “ETKA” for replacement part numbers.
Wheel rim Tyres
Size Size Make Tread
3 1/2 J x 18 offset 25.5 T125/70 R 18 99M Continental CST 17
3 1/2 J x 16 wheel offset 25.5 → Remark T125/70 R 16 96M Continental CST 17
1)  not for 4Motion
Recommended summer tyres
Recommended summer tyres, worldwide except North America and China Notes regarding the recommended tyres →  → Chapter „Explanations regarding world reg ...
