Volkswagen Golf Service & Repair Manual: Dismantling and assembling drive shaft, constant velocity joint VL100

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Front suspension, drive shafts / Drive shaft / Dismantling and assembling drive shaft, constant velocity joint VL100

Dismantling and assembling drive shaft, constant velocity joint VL100

Special tools and workshop equipment required

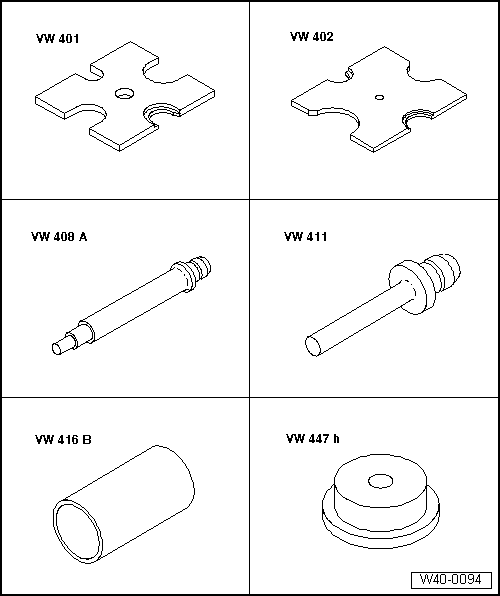

Thrust plate -VW 401-
Thrust plate -VW 402-
Press tool -VW 408 A-
Press tool -VW 411-
Tube -VW 416 B-
Thrust washer -VW 447 H-




Dismantling and assembling drive shaft, constant velocity joint VL100

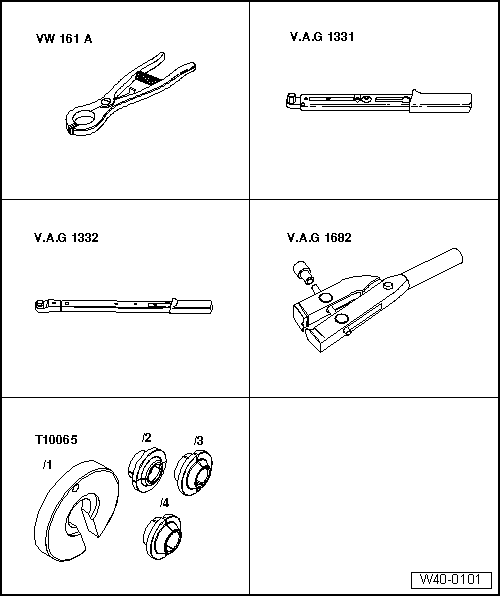

Circlip pliers -VW 161 A-
Torque wrench -V.A.G 1331-
Torque wrench -V.A.G 1332-
Special pliers -V.A.G 1682-
Assembly tool -T10065-

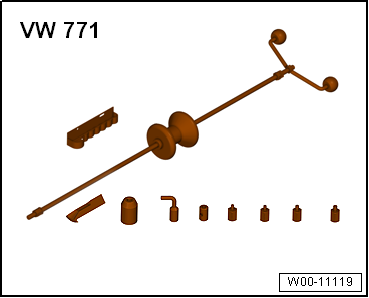

Multi-purpose tool -VW 771-


Dismantling and assembling drive shaft, constant velocity joint VL100

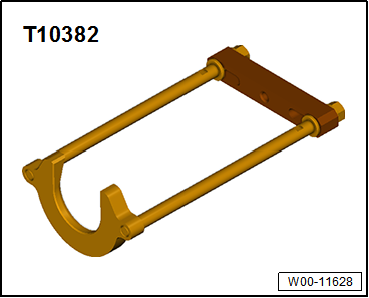

Puller -T10382-
Removing outer constant velocity joint
–  Clamp drive shaft in vice using protective jaw covers.
–  Fold back boot.
–  Set puller -T10382- up so that smooth side of puller plate -T10382/1- points to spindles -T10382/2-.
–  Assemble puller -T10382- complete with multi-purpose tool -VW 771-.


Dismantling and assembling drive shaft, constant velocity joint VL100

–  Pull constant velocity joint from drive shaft with puller -T10382- and multi-purpose tool -VW 771-.
1 -  Puller plate -T10382/1-
2 -  Spindles -T10382/2-
Driving on outer constant velocity joint


Dismantling and assembling drive shaft, constant velocity joint VL100

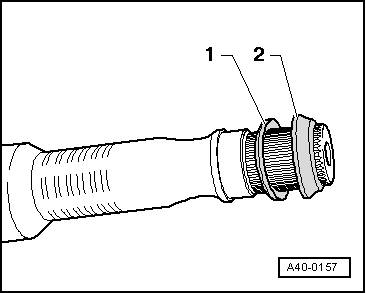

Installation position of dished spring and thrust washer on outer joint
1 -  Dished spring
2 -  Thrust washer
–  Install new retaining ring.
–  If necessary, push new joint boot onto drive shaft.
–  Knock onto shaft with plastic hammer until circlip engages.


Dismantling and assembling drive shaft, constant velocity joint VL100

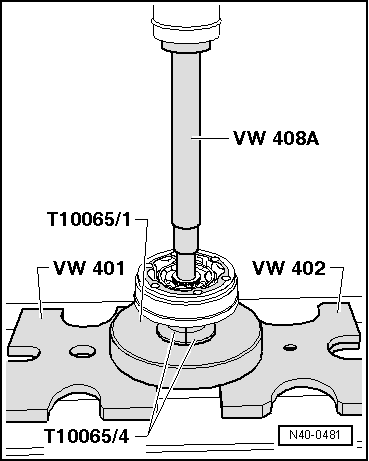

Pressing off inner constant velocity joint
Assembling


Dismantling and assembling drive shaft, constant velocity joint VL100

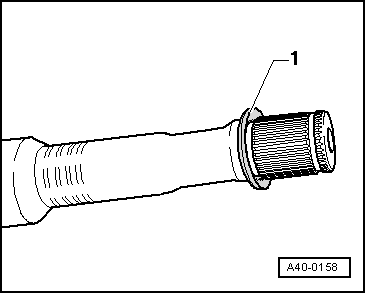

Installation position of dished spring at inner joint
1 -  Dished spring


Dismantling and assembling drive shaft, constant velocity joint VL100

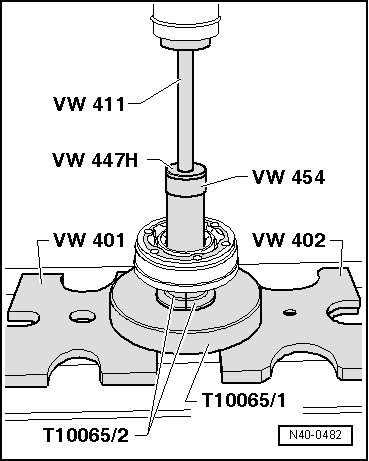

Pressing on inner constant velocity joint
  Note
Chamfer on internal circumference of ball hub (splines) must face contact shoulder on drive shaft.


Dismantling and assembling drive shaft, constant velocity joint VL100

Tighten clamp on outer joint
–  Position clamp tensioner -V.A.G 1682- as shown in diagram. Ensure jaws of tensioner lie in corners -arrows B- of ear on O-type clip.
–  Tighten clamp by turning spindle with a torque wrench (do not cant pliers).
  Note
Due to the hard material of the protective boot (compared to rubber) and the necessity of using a stainless steel clamp, it is only possible to tension the clamp with clamp tensioner -V.A.G 1682-.
Specified torque: 25 Nm.
Use torque wrench -C - with setting range of 5 ... 50 Nm (e.g. torque -V.A.G 1331-).
Make sure thread of spindle -A- on pliers moves freely. Lubricate with MoS2 grease if necessary.
If the thread is tight (e.g. due to dirt), the required clamping force for the clamp will not be attained although the specified tightening torque is applied.


Dismantling and assembling drive shaft, constant velocity joint VL100

Tightening clamp on small diameter


Dismantling and assembling drive shaft, constant velocity joint VL100

Removing and installing drive shaft heat shield
Front-wheel drive:   Component Specified torque Bolts -1- 25 Nm     &n ...
