Note

The arrows point in the direction of coolant flow.

The arrows on the coolant pipes and on the ends of the hoses must be aligned with each other.

Vehicles ►June 2013

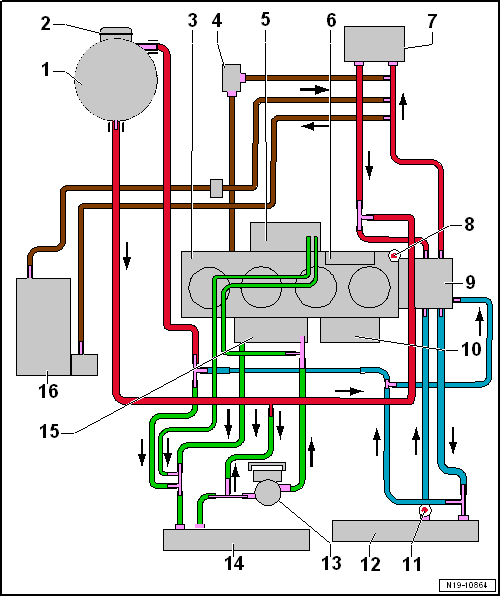

Coolant hose schematic diagram

1 -	Coolant expansion tank

2 -

Cap

For coolant expansion tank

Check pressure relief valve → Anchor

3 -	Cylinder head/cylinder block

Change coolant after renewing.

4 -	Engine preheating element -Z97-

Only for engine codes CPVA, CPVB

5 -	Turbocharger

6 -	Integrated exhaust manifold

7 -	Heat exchanger for heater unit

Change coolant after renewing.

8 -	Coolant temperature sender -G62-

9 -	Coolant pump

With thermostat housing

10 -	Engine oil cooler

11 -	Radiator outlet coolant temperature sender -G83-

12 -

Radiator

Change coolant after renewing.

13 -	Charge air cooling pump -V188-

14 -	Radiator for charge air cooling circuit

Change coolant after renewing.

15 -	Charge air cooler in intake manifold

Change coolant after renewing.

16 -	Auxiliary heater

Optional equipment

Vehicles, June 2013 ►

Coolant hose schematic diagram

1 -	Coolant expansion tank

2 -

Cap

For coolant expansion tank

Check pressure relief valve → Anchor

3 -	Cylinder head/cylinder block

Change coolant after renewing.

4 -	Engine preheating element -Z97-

Only for engine codes CPVA, CPVB

5 -	Turbocharger

6 -	Integrated exhaust manifold

7 -	Heat exchanger for heater unit

Change coolant after renewing.

8 -	Coolant temperature sender -G62-

9 -	Coolant pump

With thermostat housing

10 -	Engine oil cooler

11 -	Radiator outlet coolant temperature sender -G83-

12 -

Radiator

Change coolant after renewing.

13 -	Charge air cooling pump -V188-

14 -	Radiator for charge air cooling circuit

Change coolant after renewing.

15 -	Charge air cooler in intake manifold

Change coolant after renewing.

16 -	Auxiliary heater

Optional equipment
