Volkswagen Golf Service & Repair Manual: Checking belt webbing

Procedure
–  Pull belt completely out of inertia reel or lap belt adjustment plate.
–  Check belt webbing for soiling, and if necessary wash with a mild soapy solution → Owner's Manual.
  •   If either of the types of damage illustrated below (1 and 2) are determined on accident vehicle, renew seat belt complete with belt buckle.
  •   If damage as illustrated under points 1, 2, 3 and/or 4 is determined on a vehicle which has not been involved in an accident, it is sufficient to renew damaged belt only.

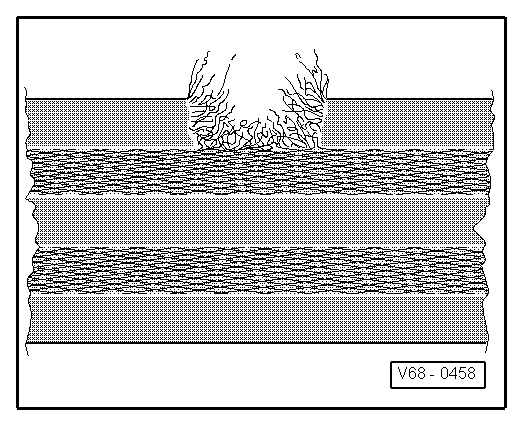

1 - Belt webbing cut, torn or chafed.
1 - Belt webbing cut, torn or chafed.

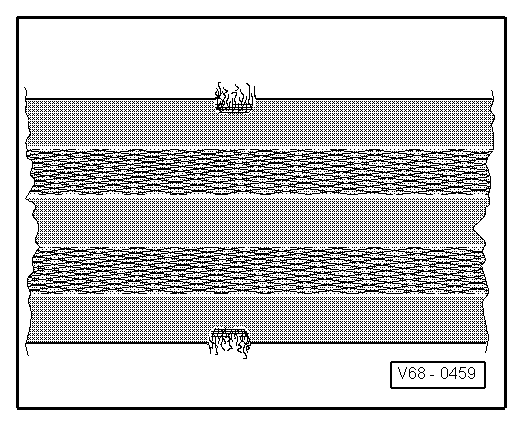

2 - Torn webbing loops on belt edge.
2 - Torn webbing loops on belt edge.

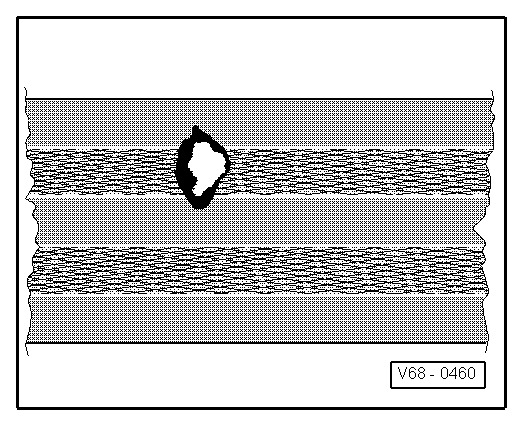

3 - Burns caused by cigarettes or similar.
3 - Burns caused by cigarettes or similar.

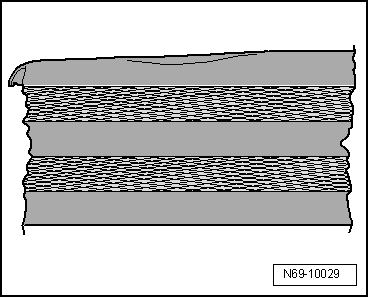

4 - One edge of belt deformed or wavy
4 - One edge of belt deformed or wavy
