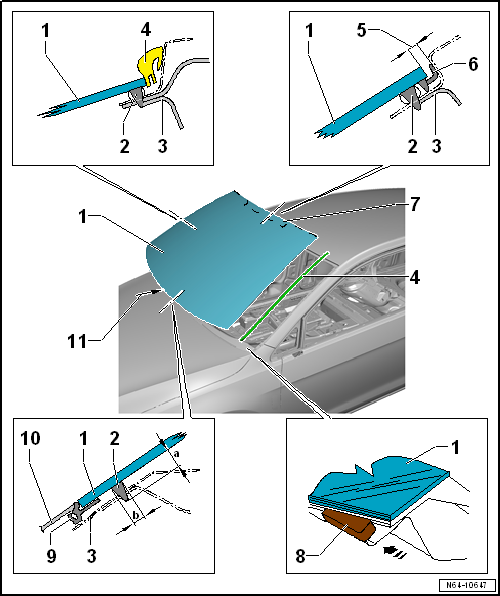

Assembly overview - windscreen

1 -	Windscreen

Removing and installing → Chapter

2 -	PUR adhesive sealant

Cross section of bead: -width b- = 7 mm, -height a- = 10 mm (including precoating, residual material on window glass and window flange).
Minimum curing period → Chapter

3 -	Body flange

Touch up paintwork damage

4 -	Water deflector

5 -

Gap

Must be uniform

6 -

Seal

7 -	Communication window

For insulated glass only

8 -	Windscreen adjuster

443 845 631 A
Remove 2 hours after installation of windscreen

9 -	Windscreen seal

Is part of windscreen

10 -	Plenum chamber cover

Must be removed from windscreen seal by hand only
Removing and installing → Chapter

11 -	Electrical connections

For heated windscreen

Windscreen

...

Removing and installing windscreen

Note The removal of a bonded window is described using the Removal kit for flush bonded windows -V.A.G 1474 A-. ...
