Volkswagen Golf Service & Repair Manual: Assembly overview - toothed belt cover

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine cylinder head, valve gear / Toothed belt drive / Assembly overview - toothed belt cover

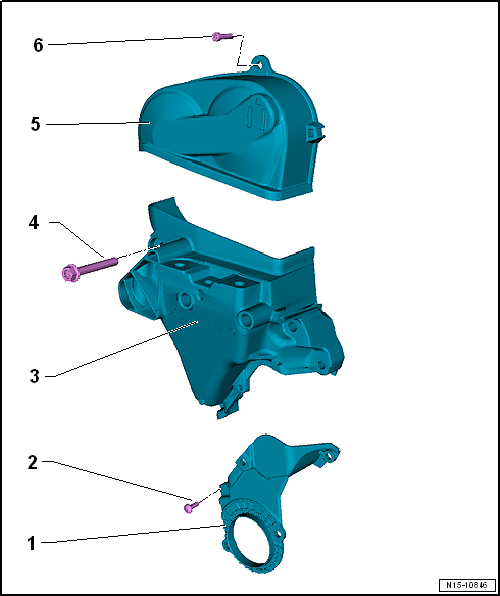

Assembly overview - toothed belt cover

1 -	Lower toothed belt guard

2 -

Bolt

8 Nm

3 -	Engine support

Specified torque and tightening sequence → Fig.

4 -

Bolt

Specified torque and tightening sequence → Fig.

5 -	Upper toothed belt guard

6 -

Bolt

8 Nm

Toothed belt drive

...

Assembly overview - toothed belt, engine codes CPTA, CHPA, CZEA, CZDA

1 - Toothed belt Before removing, mark direction of rotation with chalk or felt-tipped marker pen. Check for wear Remo ...
