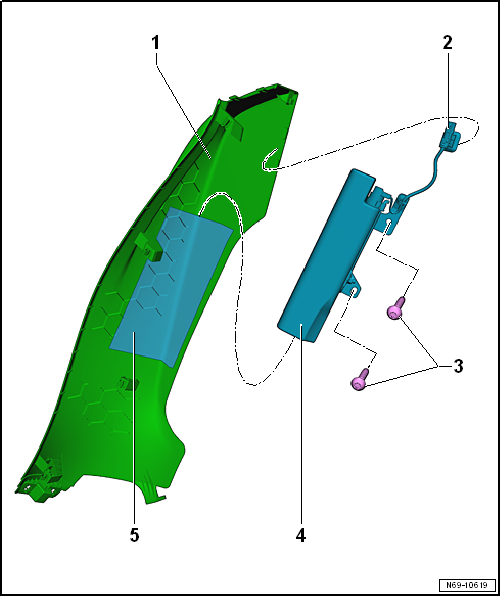

Assembly overview - rear side airbag

1 -	Seat bolster

2 -	Electrical wiring

From rear side airbag igniter on driver side -N201-/rear side airbag igniter on front passenger side -N202-

WARNING

Observe safety instructions for pyrotechnic components → Chapter.

3 -

Bolts

Qty. 2
8 Nm

4 -	Rear side airbag

Driver side: with rear side airbag igniter on driver side -N201-
Front passenger side: with rear side airbag igniter on front passenger side -N202-
Removing and installing → Chapter

5 -	Airbag pocket
