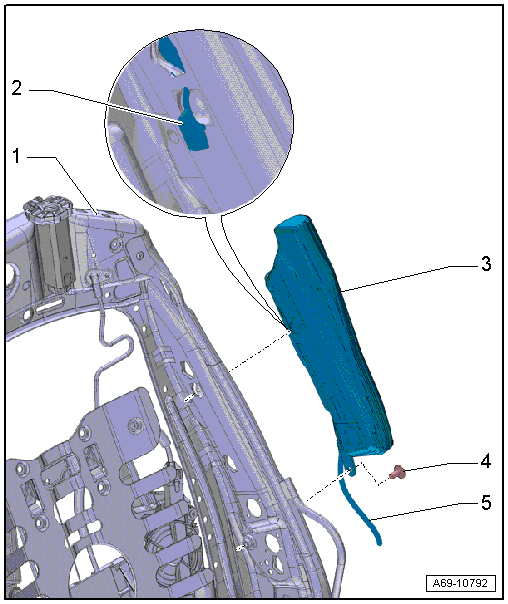

Assembly overview - front side airbag

1 -	Backrest frame

2 -

Hook

For attaching side airbag to backrest frame

3 -	Front side airbag

Driver side: with side airbag igniter on driver side -N199-
Front passenger side: with side airbag igniter on front passenger side -N200-

WARNING

Observe safety instructions for pyrotechnic components → Chapter.

Removing and installing → Chapter

4 -

Bolt

Renew after removal
8 Nm

5 -	Electrical wiring

From side airbag igniter on driver side -N199-/side airbag igniter on front passenger side -N200-.
