Note

The assembly overview is shown for the front door trim on driver side. The assembly overview for the front passenger side is analogous.
The assembly overview is shown for 4-door models. The assembly overview for 2-door models is analogous.

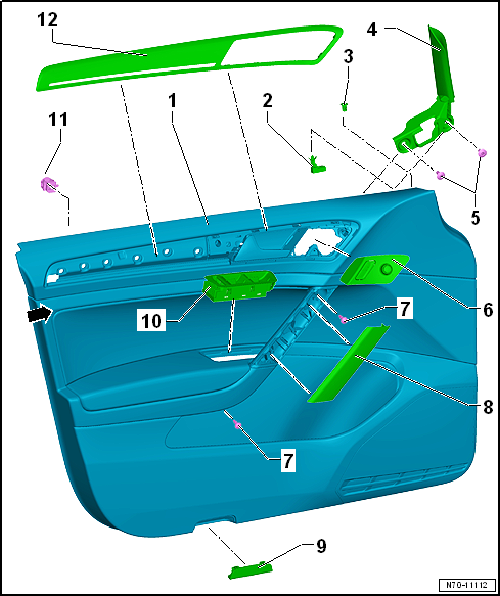

Assembly overview - front door trim

1 -

Door trim

Removing and installing → Chapter

2 -	Warning lamp for SAFE function of central locking -K133-

Driver door only
Overview of fitting locations → Electrical system; Rep. gr.96

3 -

Sleeve

For central locking deadlock function warning lamp -SAFE- -K133-
Driver door only

4 -	Mirror cover trim

Removing and installing → Chapter

5 -

Clip

Qty. 2
Renew any damaged or deformed clips

6 -	Exterior mirror adjuster -EX11-

With driver side interior locking button for central locking system -E308
Overview of fitting locations → Electrical system; Rep. gr.96

7 -

Bolt

Qty. 2
4.5 Nm

8 -	Upper part of handle recess

9 -

Reflector

Overview of fitting locations → Electrical system; Rep. gr.96

10 -	Operating unit for window regulator in driver door -E512-

Overview of fitting locations → Electrical system; Rep. gr.96

11 -

Clip

2-door model: qty 7
4-door model and estate: qty 6 (one crash clip on top left -arrow-)
Insert into trim
Renew any damaged or deformed clips

12 -	Trim panel

Allocation → Electronic Parts Catalogue
Removing and installing → Chapter

Front door trims

...

Removing and installing front door trim

Note Removal and installation are described for the front door trim on driver side. Follow same instructions for the front ...
