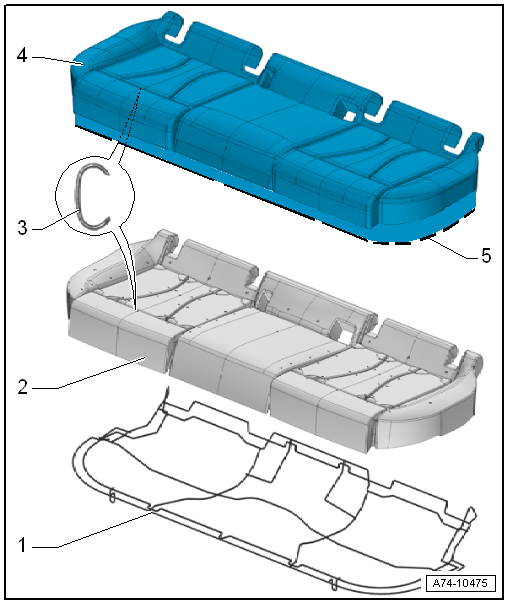

Assembly overview - cover and padding for bench seat

1 -	Seat frame

2 -	Seat padding

Allocation → Electronic Parts Catalogue
Removing and installing seat cover and seat padding → Chapter
Separating seat cover from seat padding → Chapter

3 -	Upholstery clip

For attaching seat cover to seat padding
Renew after removal
When installing, fit in same location using upholstery clip pliers -V.A.G 1634

4 -	Seat cover

Different equipment versions
Allocation → Electronic Parts Catalogue
Removing and installing seat cover and seat padding → Chapter
Separating seat cover from seat padding → Chapter
After installation, check that there are no creases in seat

5 -

Channel

Sewn to seat cover
For attaching seat cover to seat frame
