Volkswagen Golf Service & Repair Manual: Assembly overview - airbag control unit

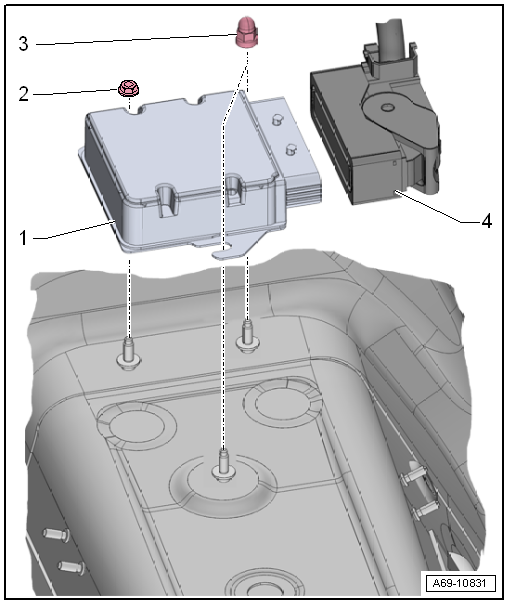

| 1 - | Airbag control unit -J234- |
- Removing and installing → Chapter
- The control unit is earthed via the housing with the body
| 2 - | Nut |
- Nut and earth stud form the earth connection for the control unit
- Threads must be free of paint and dirt
- 9 Nm
| 3 - | Nut |
- Qty. 2
- Nut and earth stud form the earth connection for the control unit.
- Threads must be free of paint and dirt.
- 9 Nm
| 4 - | Electrical connections |
Removing and installing airbag control unit -J23
Removing
WARNING
Observe safety instructions for pyrotechnic
components
→ Chapte ...
