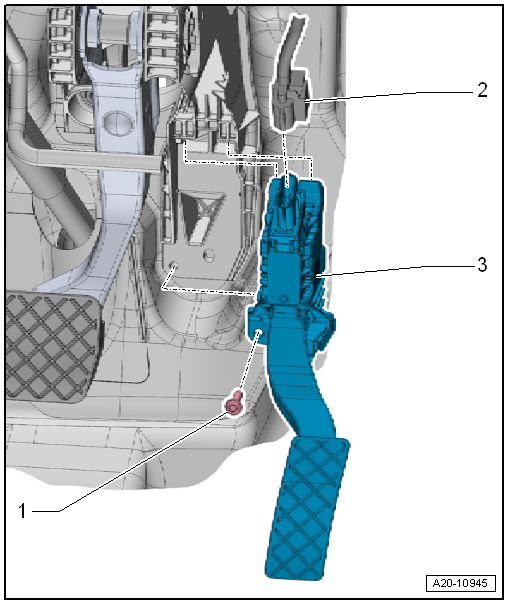

Assembly overview - accelerator module

1 -

Bolt

6 Nm

2 -	Electrical connector

Make sure it is engaged properly; pull to check that plug-in connector is correctly engaged

3 -	Accelerator pedal module -GX2-

Includes

Accelerator position sender -G79-

Accelerator position sender 2 -G185-

Removing and installing → Chapter.

Accelerator mechanism

...

Removing and installing accelerator module -GX2-

Removing – Fold floor covering -1- forwards in -direction of arrow-. ...
