Volkswagen Golf Service & Repair Manual: Description of battery charger -VAS 5903-

The battery charger -VAS 5903- is suitable for charging all 12V batteries supplied by Volkswagen.

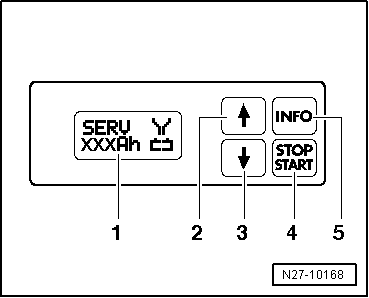

Battery charger -VAS 5903-
1 -  Display
2 -  Adjustment button “Up”↑
3 -  Adjustment button “Down”↓
4 -  START / STOP
5 -  INFO
