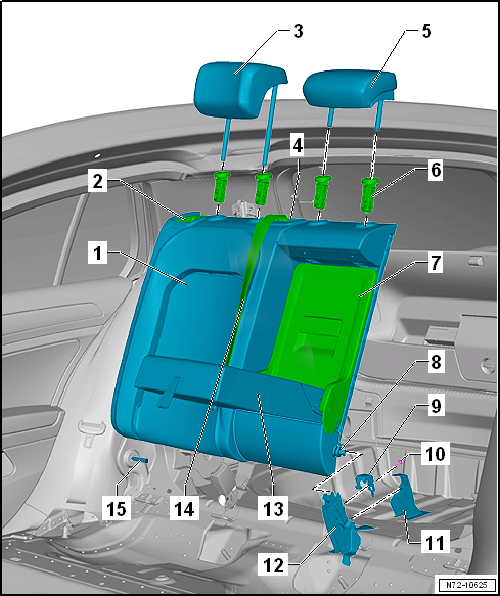

Assembly overview - rear seat backrest

1 -	Rear seat backrest

Allocation → Electronic Parts Catalogue
Removing and installing → Chapter

2 -

Lock

For rear seat backrest
Assembly overview → Chapter

3 -	Outer head restraint

Removing and installing → Chapter

4 -	Rear centre belt guide

Renew complete belt guide if damaged
Removing and installing → Chapter

5 -	Centre head restraint

Removing and installing → Chapter

6 -	Head restraint guide

Removing and installing → Chapter

7 -

Lid

For through-loading aperture
Allocation → Electronic Parts Catalogue
Removing and installing → Chapter

8 -	Mounting pin, inner

For rear seat backrest
13.5 Nm

9 -

Catch

For centre mount
Removing and installing → Chapter

10 -

Bolt

8 Nm

11 -

Cover

For centre mount
Only for saloon
Removing and installing → Chapter

12 -	Centre mount

Welded to underbody.

13 -	Centre armrest

Allocation → Electronic Parts Catalogue
Assembly overview → Chapter
Removing and installing → Chapter

14 -	Rear three-point seat belt

Removing and installing → Chapter

15 -	Outer support pin

Welded to body
